Flextur

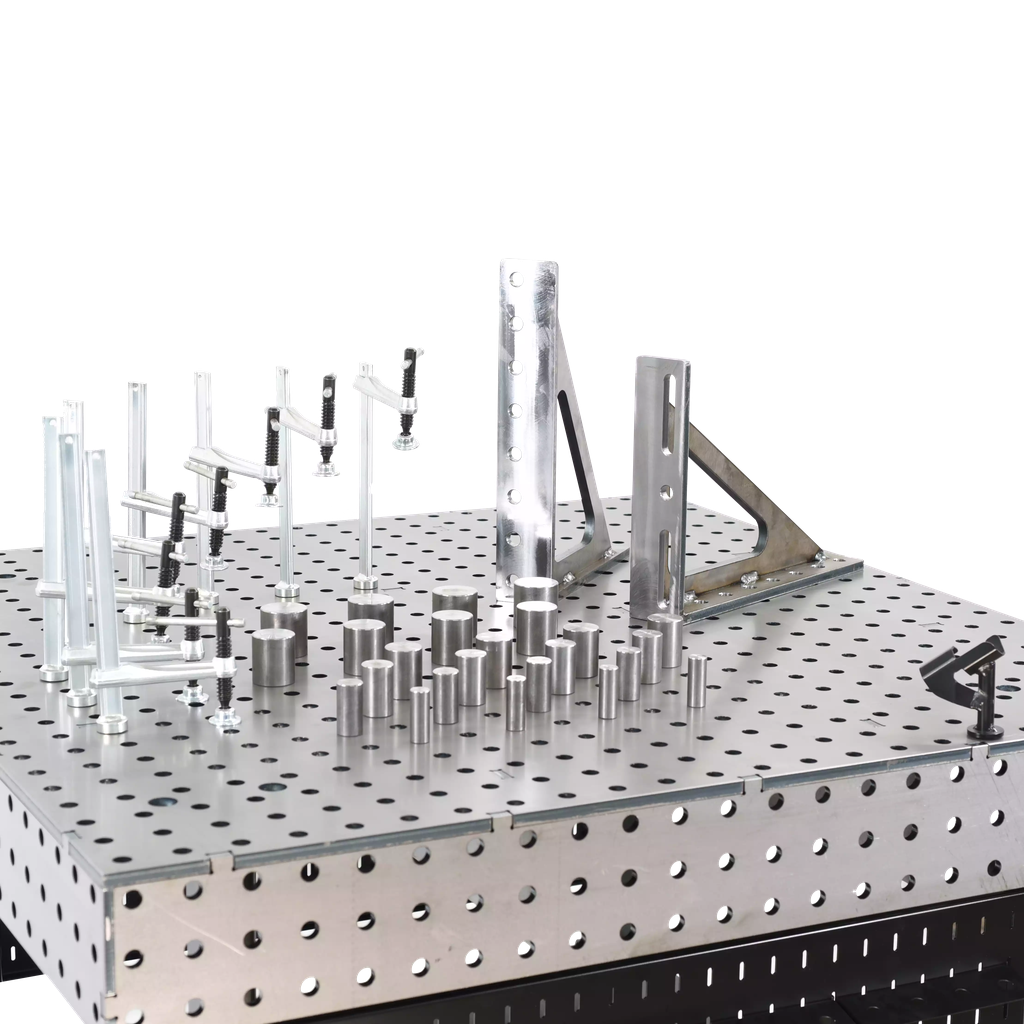

48" x 48" x 6" Welding Table with 57 Piece Fixturing Kit

FXT71500005 FXT71500005
FXT71500005 FXT71500005
FXT71500005 FXT71500005
Flextur

48" x 48" x 6" Welding Table with 57 Piece Fixturing Kit

Contact us for Availability
Item Code: FXT71500005
Catalog Number 71500005

Fetching product details


Description

This Package includes a Flextur™ Welding Table 48"l x 48"w x 35"h, with 1/2" top supported by 3/8" x 5" struts every 16", Gridlok panels, a full bottom shelf, casters, and a 2,000 lbs. capacity. Surface flatness is +/- .015" over the 32 square feet area. All 48" Tables come equipped with heavy-duty swiveling lockable 2"W x 6"H casters. Change over is easy and quick with movable 16mm locator pin in a 2" grid pattern. Skirting along all sides has the same hole configuration and gives the flexibility to extend your table in any direction, up to 24", with a Flextur Fixture Block for larger Weldments. Well suited for larger jobs Flextur Welding Tables will improve accuracy and greatly reduce set up time for complicated Weldments. Inexperienced Welders can easily make an accurate setup and become productive in minutes with this Welding Table. Onboard steel Gridlok tool board panels keep tools organized and within easy reach. Base requires assembly but all welding table tops ship assembled. A complete line of Flextur and Gridlok Accessories, ordered separately, are available to outfit your table. In addition you get a Flextur™ 57-piece Fixturing Kit for Welding. Use with Flextur Welding Tables and tables with 16mm holes. This 57 Piece Fixturing Kit has the clamps and accessories to help you be productive on your new weld table from the start. Accomplish almost anything you need to do on your weld table with this capable kit. Recommended for Flextur 36” x 30” and 36” x 72” Stationary tables, and Flextur 48” x 48” with Skirt Welding tables. This kit includes: 8) CLAMP (5/8” vertical, 10) HOOK (3” standard, 10) HOOK (4” tool cradle, 4) LOCATOR PIN (.75”, 4) LOCATOR PIN (1.0”, 4) LOCATOR PIN (1.25”, 4) LOCATOR PIN (1.5”, 4) LOCATOR PIN (1.75”, 4) LOCATOR PIN (2.0”, 1) WELD GUN HOLDER, 2) BIN (3”x 5”, 2) ANGLE BRACKET (90°. American Made in Dalton, Ohio U.S.A.

Specifications

  • Brand : Flextur
- +
